Engine Rebuild
Kawasaki GPZ RX1000 (ZX10a)
 I already have the engine stripped and all the relevant parts are on the workbench. As usual, I have placed to parts in order. When I strip any machine I usually place the first nut, bolt washer, on one side and to the rear or my workbench, and work forward. It stops me from losing parts, it also gives a good indication as  to what the part does and where it goes on the rebuild without having to referring back to the manual too much.
1. The crank, con(necting) rods, and big end shells.
 The con rods, shown top left, and there are two in site in the crank itself. They have two bearings each, these are called the big end shells, and they fit firstly into the con rod, then the con rods are then placed onto the crank itself.
 When doing up the bolts of the con rods you have to tighten them exactly, too loose and they will fall off, too tight and they won't turn, or seize up when used.
 Big end shells should always be replaced in the same con rods they came from.
2. The lower crankcase.
 Now the crankcases are clean, the main shells are placed into their correct position, top left. There are four in the lower cranks in this engine, three at the front left and the last front right.
 You can also see the gear selector forks (lower part of large photo.) I have checked them and are free of damage or wear. These move the cogs on the gearbox shafts and change gears

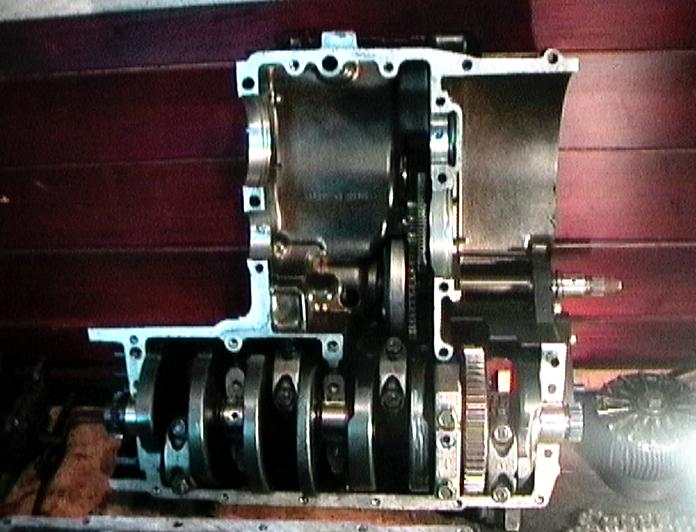

3. The upper crankcase, and crank.
  I have cleaned the upper crankcase, then placed the five main shell bearing in place. Then placed the crank into position, then placed the last of the lower main shells into place and loosely done the two bolt and clamp which hold the crank into place, later I'll have will have to tighten them to the correct torque.
4. Gear clusters.
 I have checked the cogs of both shafts and found no damage, so I don't have to take either of the clusters apart. The top one is the shaft that goes through the clutch, the lower one is the shaft which, eventually will have on the cog which hold the drive chain.
 The next step in to place both shafts into place into the  crankcase.
5. Placing the main output gear cluster and shaft into position.
 First you have to align the two selector forks so they fit into the two grooves between the second and third cogs, then the fourth and fit cogs, then gently the shaft into position into the lower crankcase. the hole in the bearing on the left of the shaft shown here should point up, and it will be align up with a dowel in the upper crankcase.

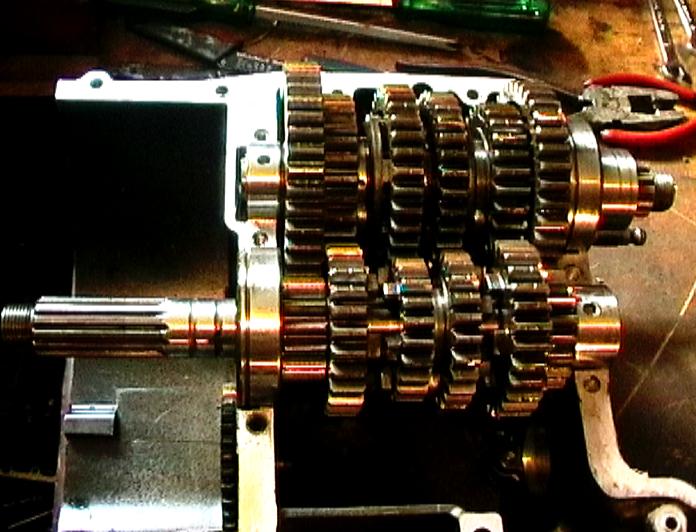

6. Placing the main input gear cluster and shaft into position.
 Again, position the selector fork so that it aligns up with the groove into the input shaft between the third and fourth cog, then gently lower the shaft into position. again, make sure the hole in the bearing in the end of the shaft points up so it aligns up with the dowel in the upper crankcase.

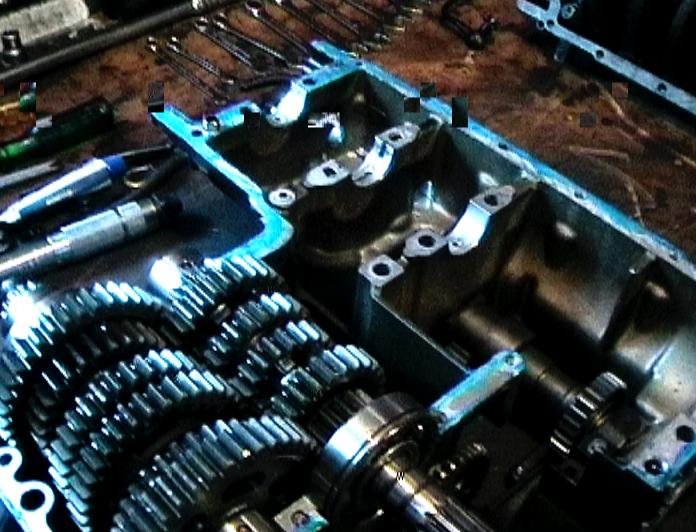

7. Preparing to join the two crankcases.
 Make sure all dowels are in the correct place, and then lightly smear a bit of sealing compound onto the lower parts of the crankcase, where the two cases meet. Do not too much, as when the crankcases are bolted together, the excess can get into oil ways and cause problems.
8. Joining the crankcases.
 Gently lower the top crankcase, with the the crank shaft itself in it. Make sure the dowels mentioned earlier are located correctly, and the semi circular retaining clips are located in the two bearings of the gear shafts, fit flush with the groove top crankcase.
 Now put in a couple of the crank case bolts into the top crankcase, just finger tight for now, just to keep the two cases together before I begin on the crank case bolts sequence. These bolts are go in sequence, and have to be tightened exactly.
9. Installing the clutch, sorry, I got no photo's of that, camera run out of battery power, and I wasn't waiting.
10. Alternator drive chain mechanism.
 place the chain over both cogs and hold them apart and slide both splines onto the shafts together.
 Add the two washers and bolts, then tighten.
11. Alternator drive chain tensioner.
 This you have to hold in the position as you can seen in the photo, it is spring loaded. and there are two washers on the back side of the two washers and they have to be in position as you position the tesioner. The two bolts should be treated with thread lock, as if they come undone, it will smash into the clutch basket.
Once this is done the gasket should be a small amount of gasket sealant and placed over the clutch casing which then be placed into positioned and tightened.

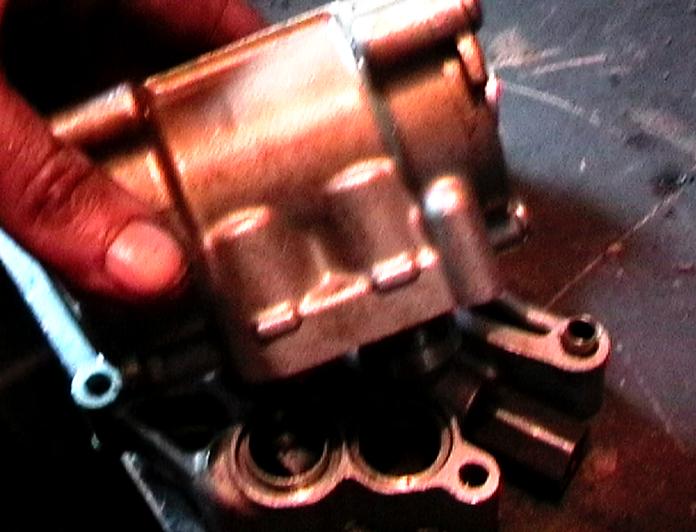

12. Oil pump.
 Now the oil pump has been cleaned and the dowels and oil seals have been correctly, the oil pump can be placed onto the plate, which will fit up and into the sump.

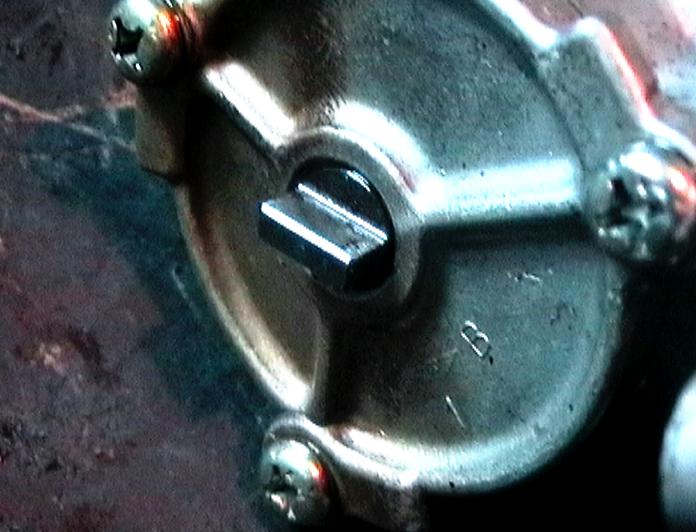

There is a small key on both sides of the pump itself, these have to be positioned correctly, or the pump will not sit in the crankcase properly.  They run up/down if you have the engine right side up or, upside down. There is a small oil seal on the other end, which should not be forgotten.

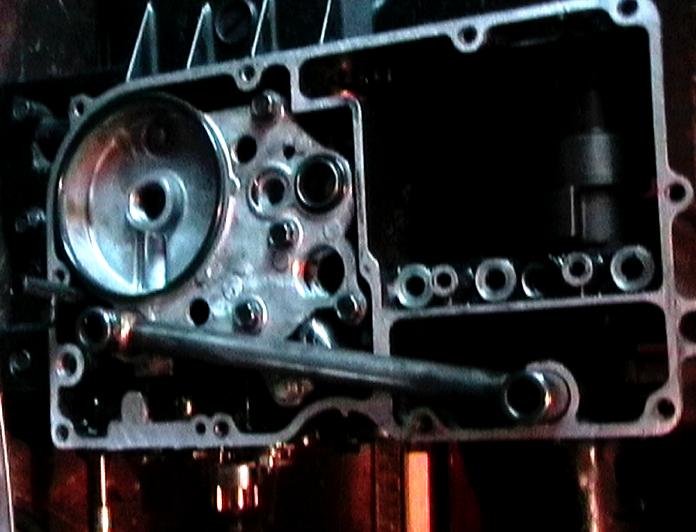

13, The five bolts which hold the oil pump casing have now been tightened. The dowels and "O" ring seals are being placed into position, as with the first of the oil tubes feed lines. The large circular oil seal in the top left will eventually hold the oil filter and casing.
14, The oil sieve has now been put into position, and the second of the two internal oil tube feeds.

15, A small amount of gasket sealant now has to be smeared the outside edges of the casing then the gasket should be positioned before replacing the sump plate itself.

16, The gear selector casing has to be placed into position by 9 screws, then place drive sprocket and the tab washer are put onto the splines into the shaft. Then do do the nut itself is tightened, before bending up the edges of the tab washer, this is to stop the cog nut from undoing itself when being used.

17, Water pump. This has to align the shaft with the "key" on the oil pump. Make the "O" seal is not damaged.

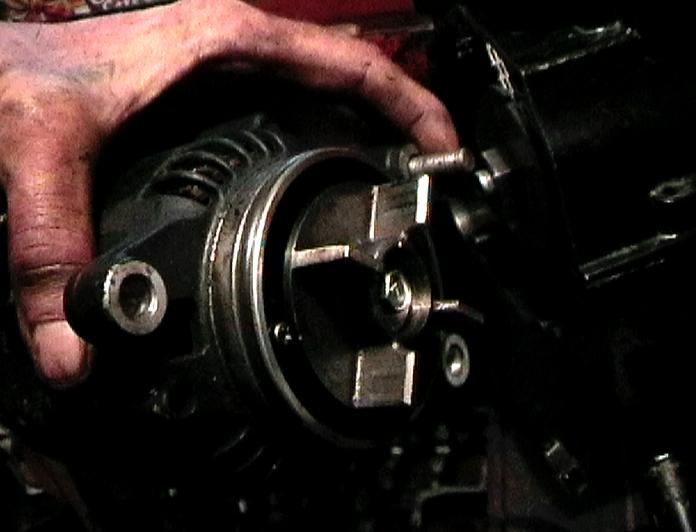

18, The alternator.
 The alternator, which generates the electricity for battery, lights etc. has four splines which fit into four cush drives into the crankcase. There are 3 bolts which hold them into place.
(cush drives have rubber inserts)

19, The starter motor.
 This sits just behind the the alternator, and the splined shaft fits in easily enough, again make sure the "O" seal is good condition, if so, tighten the two bolts that hold in position.
